The bathroom system

Key Facts

Enjoy planning and implementing the project.

The system is suited for private use bathrooms but also for highly frequented hotel bathrooms. From large tiles to mosaics: always with the highest aspiration for design and visual appearance.

With the bathroom system from SCHOMBURG, everything stays watertight.

Easy for you: With the installation of tiles, the bathroom system from SCHOMBURG is totally flexible. From large tiles to mosaics: your creativity knows no bounds.

The advantages

  • The appropriate waterproofing solution for each water penetration class.
  • Safety of a system, with products matched to each other.
  • Simple cleaning and maintenance thanks to CRISTALLFUGE-EPOX.

Products

AQUAFIN-1K-PREMIUM
ASO-Dichtecke-A
ASO-Dichtecke-I
ASO-Dichtmanschette-W
ASO-Gefälleecke
ASO-Joint-Tape-2000
ASO-SEM
ASO-Unigrund-GE
ASO-Unigrund-S
CRISTALLFUGE-EPOX
CRISTALLFUGE-PLUS
ESCOSIL-2000
MONOFLEX
MONOFLEX-XL
SANIFLEX
Print page

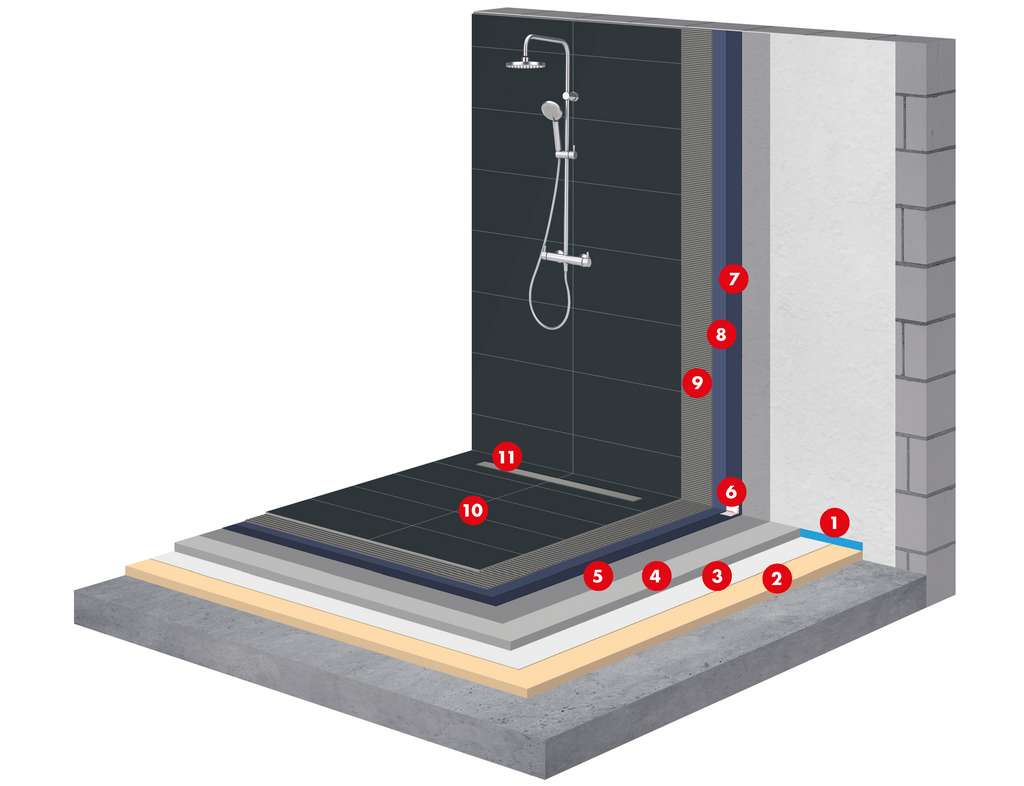

1 Substrate preperation

  1. Placing the edge insulation strips
  2. Laying the insulation layer (for floating screeds on insulation)
  3. Laying the separating layer (for floating screeds on insulation or unbonded screeds)
  4. Preparation of a screed with ASO-SEM
  5. Priming the substrate with ASO-Unigrund-GE or ASO-UNIGRUND-S

2 Creating bonded waterproofing

  1. Insertion of the ASO-Dichtbands-120 and the pre-formed pieces ASO-Dichtecke-A, ASO-Dichtecke-I, ASO-Dichtmanschette-W and the ASO-Gefälleecke with AQUAFIN-1K PREMIUM

  2. Application of the first coat SANIFLEX to the wall area and AQUAFIN-1K-PREMIUM to the floor area.

  3. Application of the second coat SANIFLEX to the wall area and AQUAFIN-1K-PREMIUM to the floor area. The minimum dry film thickness of both coats must be 0.5 mm with SANIFLEX and 2 mm with AQUAFIN-1K-PREMIUM.

3 Installation of tiles

  1. Installation of the tiles by the thin-bed method with MONOFLEX-XL or alternatively with MONOFLEX

4 Grouting of tiles

  1. Grouting the tiled walls and floors with CRISTALLFUGE-PLUS or alternatively with CRISTALLFUGE-EPOX

  2. Preparation of movement joints with ESCOSIL-2000
